Phrozen Sonic Saber 超音波刀備品配件盒

$569
  • Sonic Saber 替換刀片套件。
  • 更換方便快捷。
  • 內含 20 片刀片、2 個夾頭與 3 顆螺絲。
運送條款
退貨條款

規格

  • 技術規格
    -
  • 面板規格: 9.3” 4K Mono-LCD
    -
  • 光源:405nm ParaLED® 3.0 Module
    -
  • Z 軸:
    -
  • 機器尺寸:33 x 29 x 47 cm
    -
  • 機器重量:17.2 kg
    -
  • 列印體積: 19.66 x 12.03 x 20 cm
    -
  • XY 解析度: 52 µm
    -
  • 層厚範圍:0.01-0.30 mm
    -
  • 最大列印速度:Up to 90mm/hr
    -
  • -
  • -
  • 作業系統: Phrozen OS
    -
  • 操作介面: 5in Touch Panel
    -
  • 切片軟體:
    -
  • 檔案傳輸模式: USB | Ethernet | WiFi
    -
  • 檔案格式:.ZIP
    -
  • 適用電壓: AC100-240V
    -
  • 電源供應:180W
    -
  • 冷卻系統:SIngle Cooling Fan
    -
  • 其他功能:Air Purifier | Heater
    -

Subheading

Slideshow

Share announcements and information with your customers and welcome them to your store.

Subheading

Slideshow

Share announcements and information with your customers and welcome them to your store.

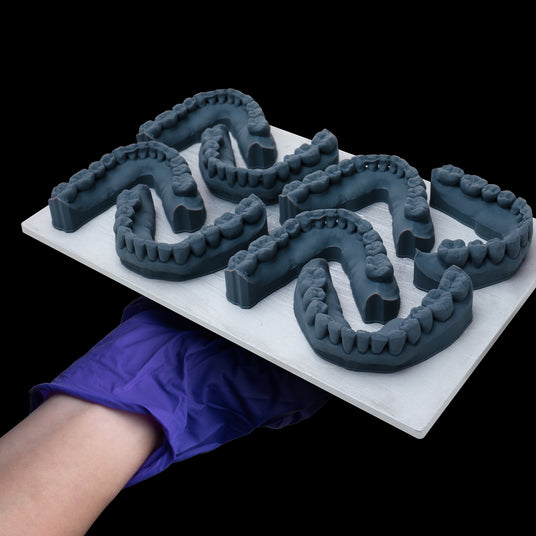

Boost Lab Efficiency with a Bigger Build Plate

Equipped with a 9.3" LCD panel, Sonic XL 4K 2022 can print up to 8 full-arch models in as little as 35 minutes.

Built-in Heater for High Quality, Stable 3D Prints

Unlike heaters that only target a specific area, this built-in system evenly warms the entire print chamber. By maintaining a consistent temperature between 30–35°C, it ensures stable and reliable prints regardless of low ambient temperatures.

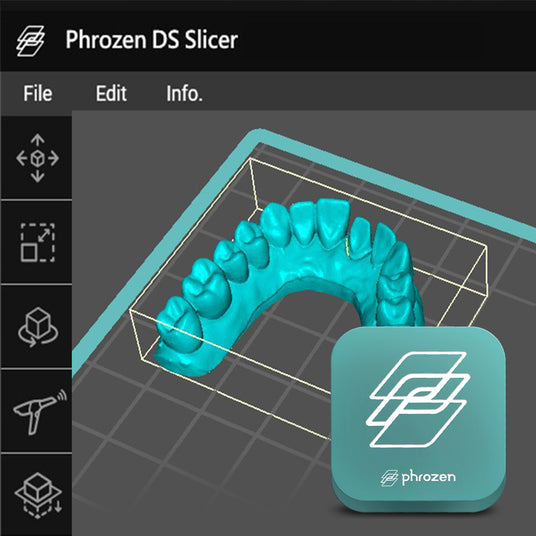

 Easy File Preparation Within a Few Clicks

Paired with Phrozen DS Slicer, it’s super easy to go from scan data to ready-to-print dental models in just a few clicks. Additionally, Dental professionals can keep things smooth and efficient with AI-powered nesting and preloaded resin settings


專為Phrozen Sonic Saber 超音波刀準備的備品配件盒,包含專用刀片鋁製刀片夾頭及固定螺絲適時更換刀片,保持超精準切割!

Phrozen Sonic Saber 超音波刀——精準切割,輕鬆打造完美模型!


    內容物
    • 使用說明卡
    • 替換刀片x20
    • 刀片夾頭x2
    • 固定螺絲x3
    產品資源


    使用教學
    • 步驟一: 確認主機關機後,以六角板手將固定螺絲鬆開。
      *Phrozen Sonic Saber 超音波刀主機出廠時附有六角板手
    • 步驟二: 將刀片(及刀片夾頭)拔除。
    • 步驟三: 安裝新的刀片(及刀片夾頭),並將之對準凹槽。
      *刀片夾頭無須每次更換
    • 步驟四: 轉緊固定螺絲,並確認刀峰方向正確。


      注意事項
      • 請確認主機關機並拔除電源線後再更換刀片
      • 操作刀片更換時,請保持手部乾燥,並建議配戴防割手套。
      • 請勿將刀片指向他人。
      • 超音波刀使用中及使用後金屬部分溫度較高,請勿立即更換刀片以防灼傷。
        產品規格
        • 刀片尺寸:18 x 4 x 0.38 mm
        • 刀片角度:30度尖角
        • 固定螺絲:M3X4

        後處理配件

        Phrozen Sonic Saber 超音波刀備品配件盒

        $569
        專為Phrozen Sonic Saber 超音波刀準備的備品配件盒,包含專用刀片、鋁製刀片夾頭及固定螺絲。適時更換刀片,保持超精準切割! Phrozen Sonic Saber 超音波刀——精準切割,輕鬆打造完美模型! 內容物   使用說明卡 替換刀片x20 刀片夾頭x2 固定螺絲x3 產品資源 說明書 使用教學 步驟一: 確認主機關機後,以六角板手將固定螺絲鬆開。*Phrozen Sonic Saber 超音波刀主機出廠時附有六角板手 步驟二: 將刀片(及刀片夾頭)拔除。 步驟三: 安裝新的刀片(及刀片夾頭),並將之對準凹槽。*刀片夾頭無須每次更換 步驟四: 轉緊固定螺絲,並確認刀峰方向正確。 注意事項 請確認主機關機並拔除電源線後再更換刀片。 操作刀片更換時,請保持手部乾燥,並建議配戴防割手套。...
